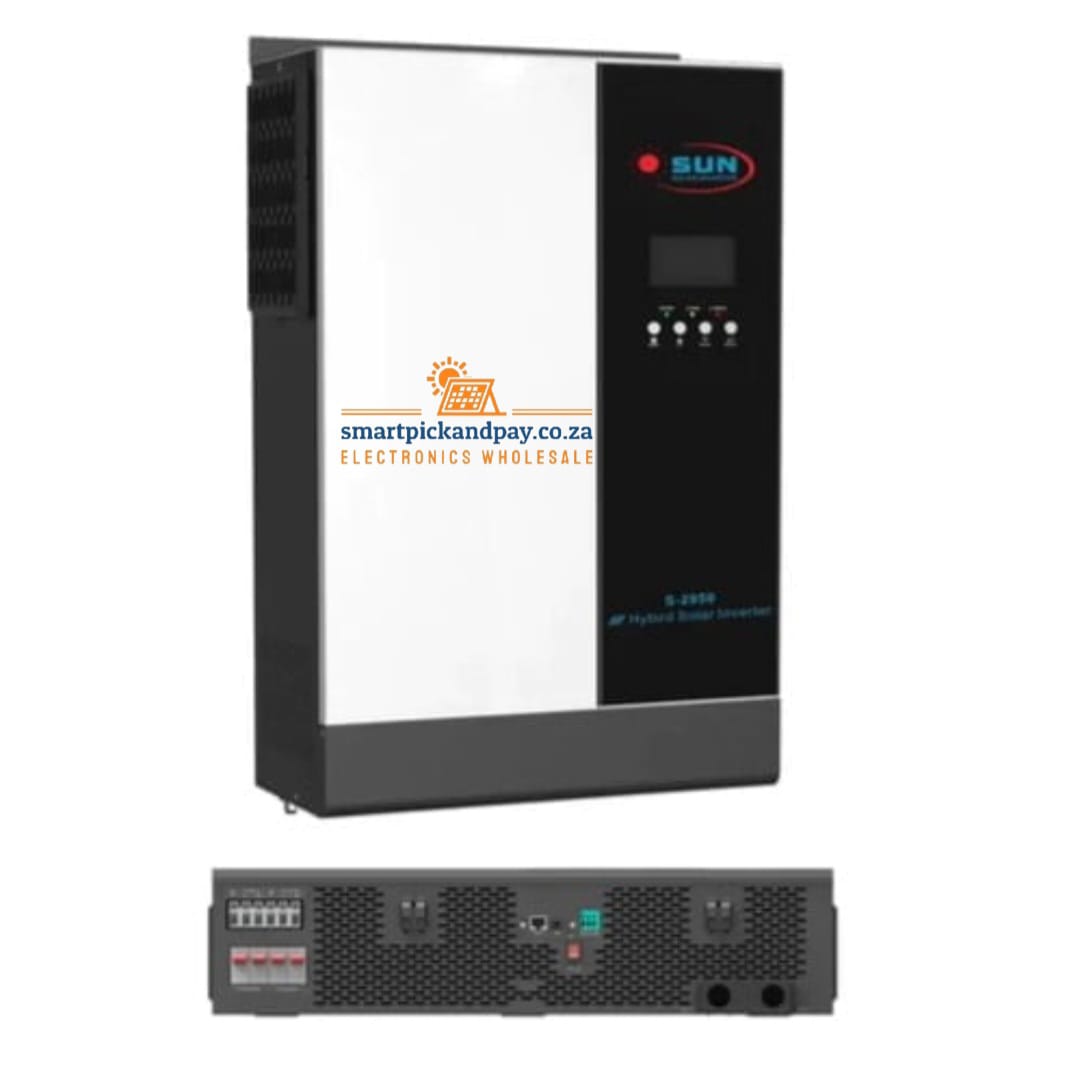

SUN S-2950 Inverter 5.2KW 48v Hybrid Solar

Description

This Inverter 5.2KW 48v Hybrid Solar SUN S-2950 is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function

(Wifi Dongle Not Included with Sun 5.2kw hybrid inverter 48V S-2950)

Inverter Mode
– Rated Power: 5200VA / 5200W
– DC Input: 48VDC, 135A
– AC Output: 230VAC, 50Hz, 22.6A

AC Charger Mode
– AC Input: 230VAC, 50/60Hz, 35A
– DC Output: 48VDC 60A(Max)

Solar Charge Mode

-Rated Power:5000W
-Nominal Operating Voltage: 360VDC
-Max.Solar Voltage(Voc):450VDC
-MPPT Voltage Range:150-430VDC
-Max PV Current: 18A

• 2-Years Repair Warranty
• Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
