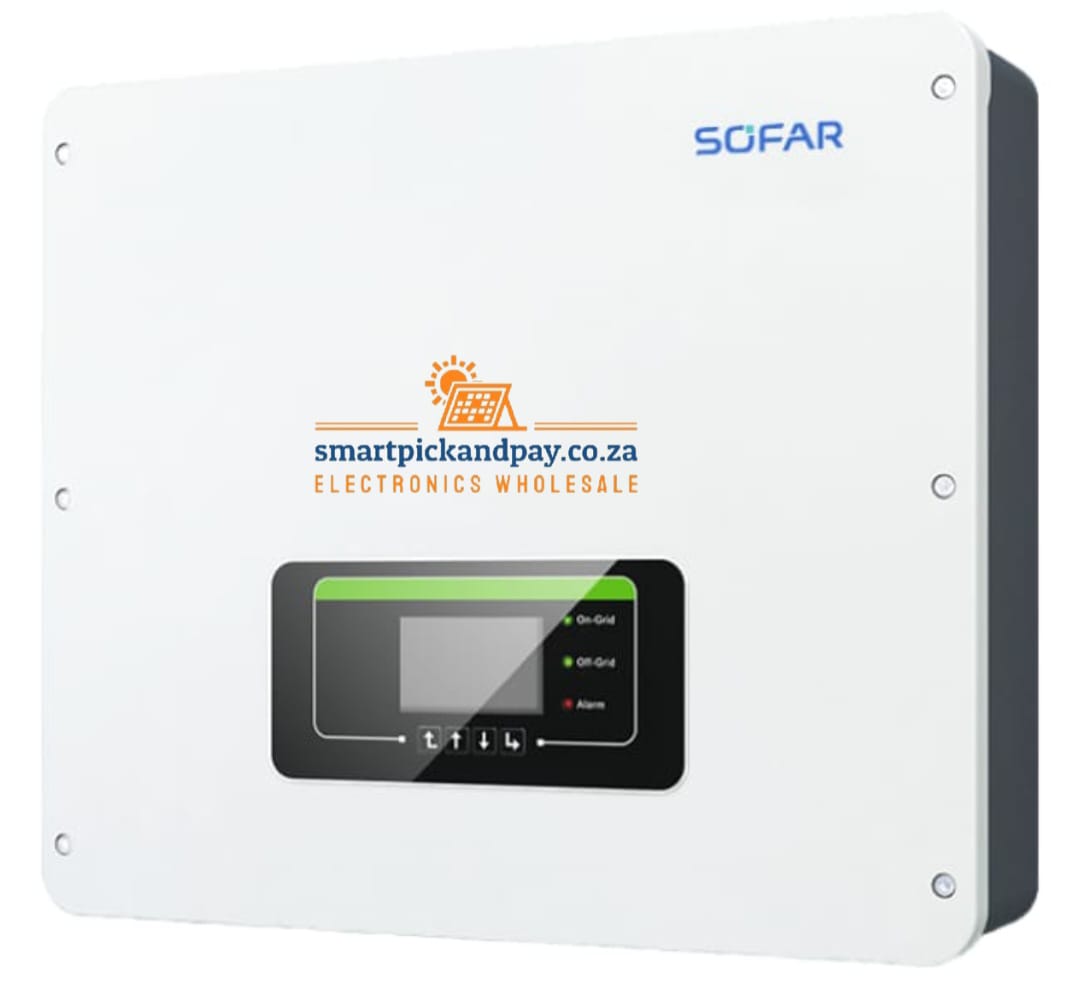

Sofar Solar three-phase hybrid inverter HYD20KTL-3PH
Three-phase hybrid inverter - the perfect solution to enable energy storage in your PV installation with on- and off-grid functions.
The HYD 15K... 20KTL-3PH is a multi-talented three-phase hybrid inverter for solar and storage applications. During network outages, it can provide up to 20 kW of unbalanced three-phase backup power (EPS) in 10ms thanks to its built-in EPS port.
Two MPPTs and two independent battery ports (on 15K to 20KTL models) allow multiple battery capacity configurations in 2.5kWh steps.
Up to 10 UPS can be connected in parallel to the EPS and AC port, making this device ideal for microgrid installations (on- or off-grid).
The integrated energy management system has several user-friendly modes, optimizing the user experience, including an automatic self-use mode. The user can also set different time and/or date ranges or rules for the day of the week.
All modes can be easily configured on the large LCD screen. This inverter is compatible with SofarSolar's AMASS Store high-voltage battery unit (GTX 3000-H). A WiFi stick comes with the inverter, to easily connect it to the Sofar monitoring portal.
INTEGRATED INVERTER WITH THREE-PHASE ENERGY STORAGE
- Different operating modes for optimal performance
- The off-grid output can be connected to an unbalanced load, a separate three-phase output is supported.
- Up to 2 MPPT, allowing flexible configuration.
- Multiple parallel systems, more flexible system solutions
- Up to two battery inputs
- Fully digital operation, allowing for greater control accuracy
Characteristics
| Battery input data | |
| Battery type | Lithium-ion, Lead-acid |
| Number of battery inputs | 2 |
| Battery voltage range | 180 – 800 V |
| Nominal voltage | 600 V |
| Battery voltage range at full charge | 400 – 800 V |
| Rated charge/discharge power | 20000 W (10000 / 10000) |
| Charge/Discharge Current | 50 A (25 / 25) |
| Peak charge/discharge current, duration | 70 A (35/35), 60s |
| Mode de communication BMS | CAN (RS485) |
| AC output data (over network) | |
| AC power rating | 20000 W |
| AC power output to power grid | 22000 VA |
| Max power AC power from the power grid | 40000 VA |
| Nominal output current | 29 A |
| Nominal output current AC current output to the power grid | 32 A |
| Max current Alternating current from the power grid | 58 A |
| Rated network voltage | 3 / N / PE, 230 / 400 Vac |
| Network voltage range | 184 Vac – 276 Vac |
| Nominal network frequency | 50 / 60 Hz |
| Network frequency range | 45 Hz – 55 Hz / 55 Hz – 65 Hz |
| Output power factor | 1 default (+/- 0.8 adjustable) |
| Output THDi (at rated output) | <3% |
| AC Output Data (EPS) | |
| Rated output power | 20000 W |
| Power Output | 22000 VA |
| Peak output power, duration | 22000 A, 60s |
| Output current | 32 A |
| Peak output current, duration | 32 A, 60s |
| Nominal output voltage | 3 / N / PE, 230 / 400 Vac |
| Nominal output frequency | 50 / 60 Hz |
| THDv | <3% |
| Switching time | < 10 ms |
| Yield | |
| Euro yield | 97.7 % |
| Efficiency | 98.2 % |
| Battery charging and discharging efficiency | 97.8 % |
| Protection | |
| DC switch | Yes |
| PV reverse polarity protection | Yes |
| Output overcurrent protection | Yes |
| Output overvoltage protection | Yes |
| Anti-islanding protection | Yes |
| Residual current detection | Yes |
| Insulation resistance detection | Yes |
| SPD | PV: Standard Type II, AC: Standard Type III |
| Battery reversal protection | Yes |
| Characteristics | |
| DC terminal | Type MC4 |
| Network AC terminal | 5P connector |
| Emergency AC terminal | 5P connector |
| Display | LCD & Bluetooth + APP |
| Communication | RS485, CAN2.0, WI-Fi, Optional: Ethernet, 4G |
| Parallel operation | Yes |
| General data | |
| Dimensions (W * H * D) | 571.4 x 515 x 264.1 mm |
| Weight | 37 kg |
| UPS topology | Without transformer |
| Standby power | < 15 W |
| Operating temperature range | -30°C -+ 60°C |
| Relative humidity | 0 – 100 % |
| Installation method | Wall |
| Maximum number of parallel units | 10 |
| Operating altitude | < 4000 m |
| Cooling | Forced air flow |
| Degree of protection | IP65 |
| Standard | |
| EMC | EN 61000-6-1, EN61000-6-3 |
| Safety standards | IEC 62109-1, IEC 62109-2, IEC 62040-1 |
| Network Standards | VDE V 0124-100, V0126-1-1, VDE-AR-N 4105, IEC 0-16 / IEC 0-21, EN 50549, G98 / G99, UTE C15-712-1 |
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
